Displays & Light-box Materials
Related Information
| Item No. | Name | Specification | Width(m) |
| LCP006M | Grey Backing PET | Thickness: 180±10μm, Weight: 330±5g/㎡ | 0.914/1.07/1.37/1.52 |
| LAS290M | Roll up & Display PP Film | Weight: 280±10g/㎡ | 0.914/1.07/1.37/1.52 |
| BPET150 | Backlit PET Film | 150mic | 0.914/1.07/1.27/1.52 |
| BPET220 | Backlit PET Film | 200mic | 0.914/1.07/1.27/1.52 |
| EG260P | High Density Grey Back PP | Thickness: 260mic, Weight: 180g/㎡ | 0.914/1.07/1.27/1.52 |
| EW260PNEW | High Density White PP | Thickness: 260mic, Weight: 180g/㎡ | 0.914/1.07/1.27/1.52 |
| DPP260NEW | Double Side Printable PP | Thickness: 260mic, Weight: 180g/㎡ | 0.914/1.07/1.27/1.52 |
| PP280 | PP Paper | 280mic | 0.914/1.07/1.27/1.52 |
| PP220M | Photo Paper | Weight: 220g/㎡ | 0.914/1.07/1.27/1.52 |
| PP220G | Photo Paper | Weight: 220g/㎡ | 0.914/1.07/1.27/1.52 |
| MG550 | Magnetic sheet | 0.55mm Magnetic Coating+PET+PVC | 0.62/1.00/1.27 |
| WB-01 | White Write board | Film: 75μm PET, Liner: 23μm PET, Adhesive: 22μm adhesive | According to customer needs |
| CXA01 | Transparent Rewritable Film | Film: 250±10μm, Liner: 25μm PET | |
| CXH01 | White Rewritable Film | Film: 100±10μm, Liner: 25μm PET | |
| SD400 | White Electrostatic Film | Film: 170±10μm, Liner: 180±10g/m² | 0.914/1.07/1.27/1.52 |
| SD401 | Transparent Electrostatic Film | Film: 170±10μm, Liner: 180±10g/m² | 0.914/1.07/1.27/1.52 |
| SD402 | PET single-sided removable double-sided tape | Film: 80±10μm PET, Liner: 35±5g/m² PET | 0.914/1.07/1.27/1.52 |
Key Product Advantages & Features
Superior Opacity: High-density grey backing prevents light penetration, ensuring vibrant graphics in roll-up stands.
Dimensional Stability: Our PET and PP substrates resist curling and heat-related deformation in light-box environments.
High Definition Output: Optimized coating for sharp details and rich saturation on both single and double-sided printable media.
Functional Diversity: Includes electrostatic, magnetic, and rewritable properties for interactive and temporary displays.
Versatile Application Scenarios
Our display media is engineered for a wide array of professional settings:

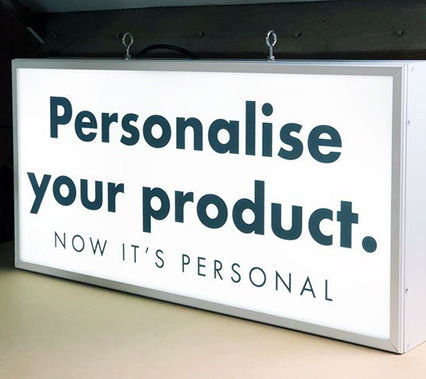

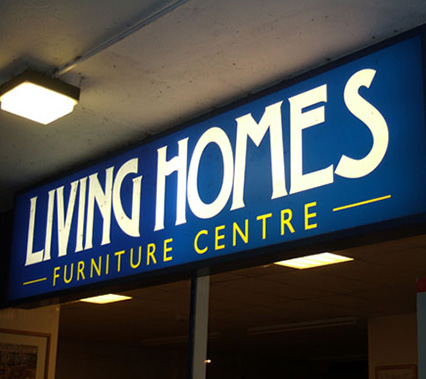

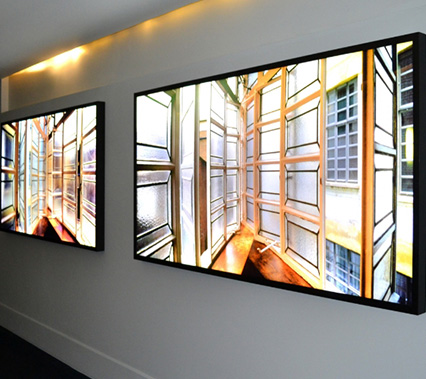

Retail Advertising: High-impact backlit films for storefront light-boxes and promotional posters.
Trade Shows: Durable roll-up banners (LCP006M, LAS290M) for easy-to-transport exhibition displays.
Office Solutions: Rewritable whiteboards (WB-01) and transparent films for collaborative environments.
Specialized Signage: Magnetic sheets and electrostatic films for seasonal glass graphics and vehicle branding.
Comparative Analysis of Material Types
| Substrate Category | Typical Use Case | Main Characteristic |
|---|---|---|
| Grey Backing PET/PP | Roll-up Banners | Non-curling, 100% Opaque |
| Backlit PET Film | Illuminated Signs | Light Diffusion, Heat Resistant |
| Electrostatic/Magnetic | Temporary Decals | Glue-free, Easy Removal |
| Rewritable Media | Writing Boards | Dry-erase, High Transparency |
In the selection of display materials for display stands and light boxes, what are the selection criteria for gray-backed PET, high-density gray-backed PP and other materials? Have weather resistance and UV resistance been considered?
Selection criteria for gray backed PET
1. Weather resistance: Gray-backed PET (Polyethylene Terephthalate, polyethylene terephthalate) has become a leader among display materials due to its excellent physical and chemical stability. The weather resistance of the material is crucial when exposed to prolonged exposure to sunlight outdoors or indoors. HANKER's gray backing PET has undergone special processing to effectively resist temperature changes, humidity fluctuations and acid and alkali erosion, ensuring that it does not discolor or deform for long-term display. We use advanced material testing equipment to simulate extreme climate conditions and verify its weather resistance to ensure that it can maintain excellent display effects in complex and changeable natural environments.
2. UV resistance: Ultraviolet rays are one of the main causes of material aging and fading. HANKER's gray backing PET is specially added with highly effective anti-UV additives. These additives can absorb or reflect UV rays, significantly reducing the damaging effect of UV rays on the material. Through laboratory accelerated aging tests, we proved that the material can still maintain its original color brightness and physical strength under long-term ultraviolet irradiation, extending the service life of the display material.
3. Optical properties: In addition to its weather resistance and UV resistance, gray-backed PET is ideal for displaying high-quality images and text due to its good light transmission and uniform color saturation. HANKER uses precision coating technology to ensure that the material surface is flat and smooth, reducing light scattering, improving picture clarity, and making the display content more vivid and realistic.
Selection criteria for high density gray backed PP
1. Weather resistance and strength: High-density gray backing PP (Polypropylene, polypropylene) occupies a place in the field of display materials with its high strength, light weight, and impact resistance. The high-density gray backing PP used by HANKER further improves its weather resistance and mechanical strength through special formula and processing technology. This material not only maintains structural stability in harsh weather conditions, but also effectively resists tearing and abrasion, ensuring the display's stability and durability.
2. UV resistance and heat resistance: Similar to gray-backed PET, high-density gray-backed PP also focuses on UV resistance. We use advanced modification technology to evenly disperse anti-UV additives into the material to effectively block UV damage and prevent material aging. The material also has good heat resistance and can maintain stable performance at higher temperatures, making it suitable for long-term use in various environments.
3. Environmental protection and sustainability: As a responsible company, HANKER always adheres to the concept of environmental protection in material selection. The high-density gray-backed PP material is recyclable and reusable, reducing environmental impact. In addition, we actively use RTO (thermal oxidation regeneration technology) environmental protection equipment to achieve a waste gas treatment rate of up to 99.9%, ensuring environmental friendliness in the production process and supporting sustainable development with practical actions.
