Premium One Way Vision

Premium one way vision selections are requested by higher requirement customer scope who are looking for long term use or customers need full compatible printing methods including solvent, Eco-solvent, UV and Latex. All the glues used in this selections of products are removable glues which ensures easy remove and less residue.

In this section, also includes some functional one way visions like PVC free one way vision made by PET and polymeric one way vision for more than 3 years application.

Product Details

Premium one way vision

Item No.

Face film

Liner

Width(m)

Hole size mm

Transmittance (%)

Outdoor durability(Month)

Storage period(Month)

Premium OWV

For Solvent, Eco-solvent printing

OBV16145UV

160±10μm

140±5g/m² Plain Liner

1.07/1.27/1.37/1.52

1.5

40%

24

12

For Solvent, Eco-solvent, UV printing

OAV14170-UV

140±10μm

170±5g/m² Composite Liner

1.07/1.27/1.37/1.52

1.5

30%

12

12

OCV16170-UV

160±10μm

170±5g/m² Composite Liner

1.07/1.27/1.37/1.52

1.5

30%

12

12

For Solvent, Eco-solvent, UV, Latex printing

OCX16170-UV

160±10μm

170±5g/m² Composite Liner

1.07/1.27/1.37/1.52

1.5

30%

12

12

OCD6200-UV

160±10μm

200±5g/m² Composite Liner

1.07/1.27/1.37/1.52

1.5

30%

12

12

OBD6204-UV

160±10μm

190±5g/m² Composite Liner

1.07/1.37/1.52

1.5

50%

24

12

OFD4200-UV

140±10μm

200±5g/m² Composite Liner

1.07/1.27/1.37/1.52

1.5

30%

12

12

Hot&New OWV

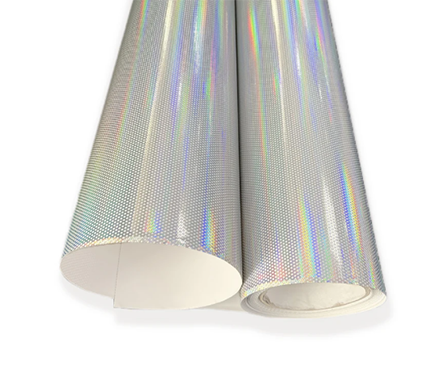

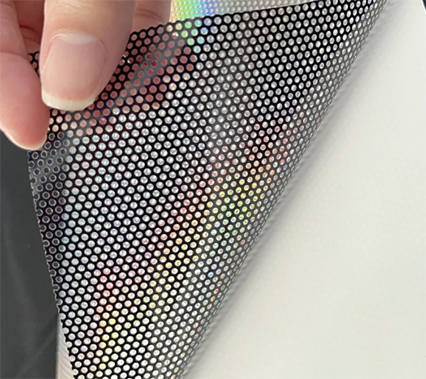

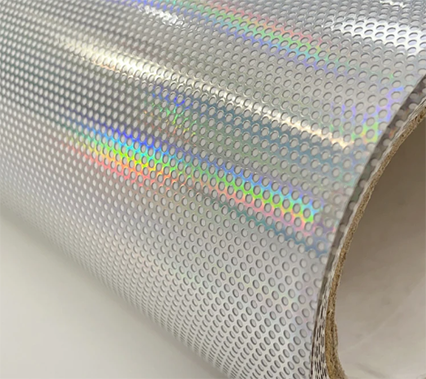

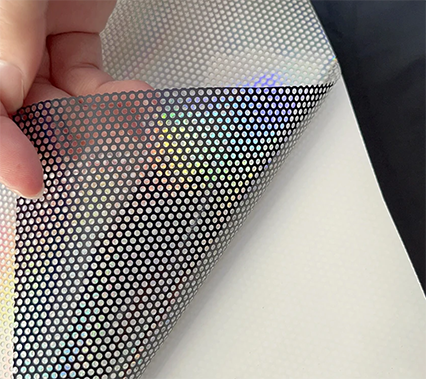

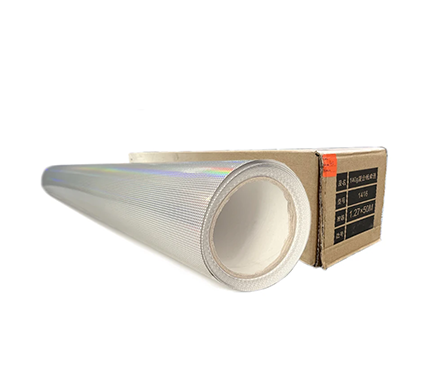

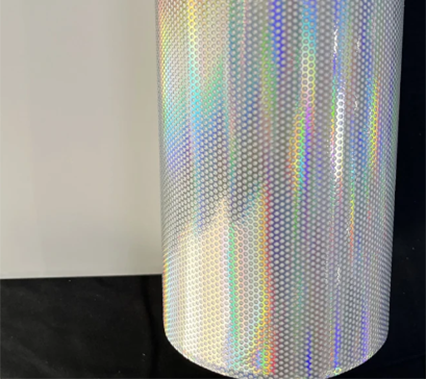

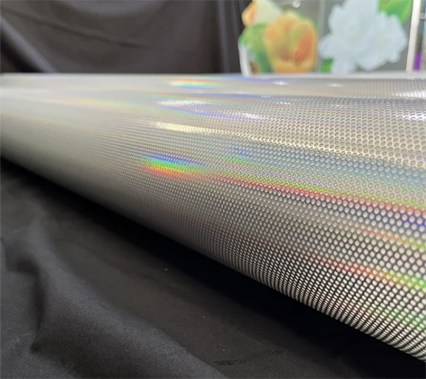

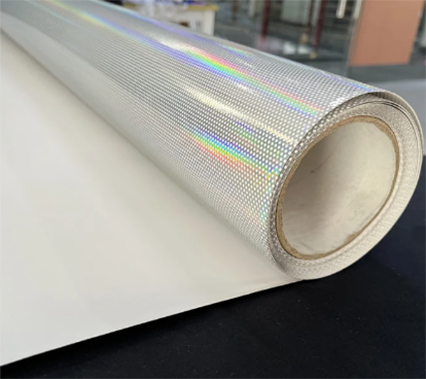

Laser OWV

01001G

115um

140±5g/m² Composite Liner

1.27/1.52

1.5

30%

12

12

PET OWV

OTX11150-UV

110±10μm

170±5g/m² Composite Liner

1.37

1.5

30%

24-36

12

Polymeric OWV

OGT16165M

160±10μm

165±5g/m² Plain Liner

1.37

1.5

40%

18-36

18

Our Specific Products Details

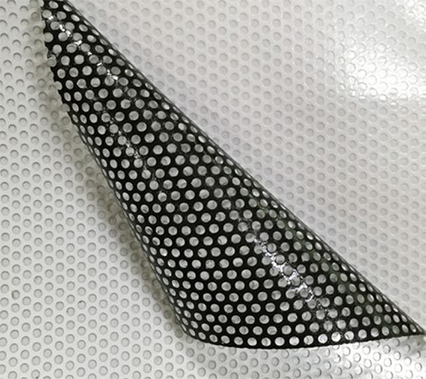

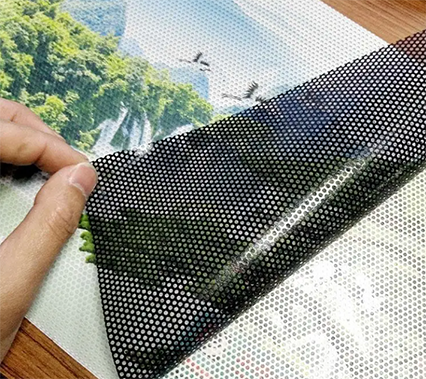

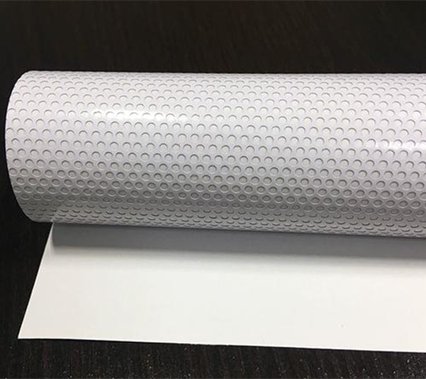

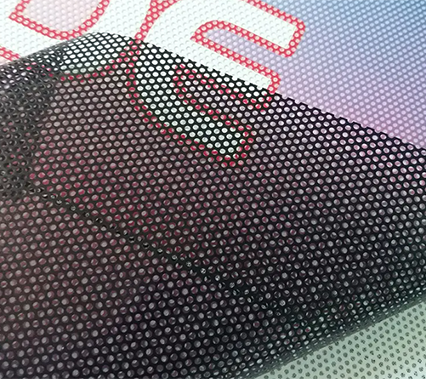

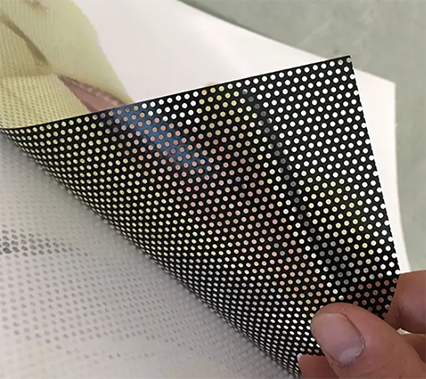

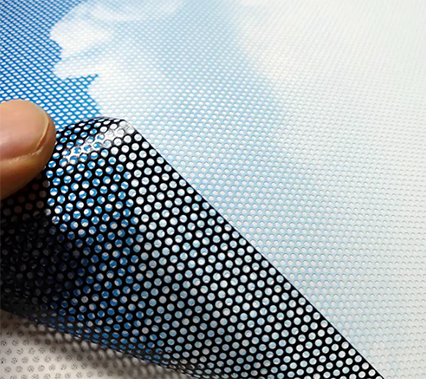

Premium OWV: OBV16145UV One Way Vision Perforated Vinyl Window Film

Product Features
Material parameters: The thickness of the face film is 160±10μm, which is moderate, ensuring the durability and stability of the film; the inner lining is 140±5g/m² ordinary base paper, which provides good support and protection for the product.
Size specifications: There are multiple width options, namely 1.07m, 1.27m, 1.37m, and 1.52m, which can meet the film needs of different scenes and different sizes of glass.
Unique aperture design: The product aperture is 1.5mm, and this aperture design makes the film have a unique one-way perspective function. When the outdoor is brighter than the indoor, the outdoor scene cannot be seen, but the indoor scene can be seen clearly; when the outdoor is darker than the indoor, the outdoor scene can be seen, and the indoor scene can also be seen from the indoor, and the clarity depends on the intensity of the outdoor illumination. At the same time, the 40% light transmittance effectively balances indoor lighting and external visibility on the basis of ensuring the one-way perspective function, which can not only allow sufficient natural light indoors, but also ensure the presentation of external advertising images or decorative effects.
Outdoor durability: It has outdoor durability of up to 24 months. In complex outdoor environments, it can resist natural erosion such as wind, sun, and rain, maintain good performance and picture effects, and is not easy to fade, deform or damage, providing long-term and stable solutions for application scenarios such as outdoor advertising display and architectural decoration.
Storage period: The product storage period is 12 months. Under normal storage conditions, the product can ensure stable performance for a long time, which is convenient for users to reasonably arrange procurement and use plans.


Application scenario
Transportation field
Bus: The one way vision vinyl window film can be attached to the glass of the bus body, which can not only display the advertising content, but also ensure that the sight of the passengers in the car is not obstructed, and at the same time, people outside the car cannot see the situation inside the car to a certain extent, protecting the privacy of passengers.
Taxi: Used on taxi windows, it can be used for advertising and increase advertising coverage without affecting the driver and passengers' field of vision or driving safety.
Subway and light rail: Suitable for subway and light rail windows. At stations and during driving, it can display advertising information to the outside world, adding a commercial atmosphere to urban rail transit while ensuring the riding experience of passengers in the car.
Building decoration field

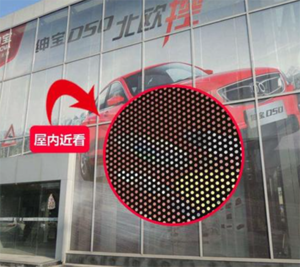

Commercial buildings: After the glass curtain walls or windows of shopping malls, office buildings, etc. are affixed with one-way perspective films, exquisite advertisements or decorative patterns can be seen from the outside, which enhances the commercial atmosphere and attractiveness of the building, while the internal personnel can clearly see the outside situation, which is convenient for observing street dynamics and passenger flow.
Residential buildings: It can be applied to residential windows. While protecting indoor privacy, it allows indoor residents to enjoy the outdoor scenery. Various decorative patterns can also be printed according to personal preferences to increase the beauty of the living environment.
Public places: The windows of public places such as schools, hospitals, and libraries use one-way perspective films, which can not only ensure the privacy of the internal space, but also keep sufficient natural light indoors. At the same time, some promotional information or decorative elements can be printed on the film to beautify the appearance of the building.

Advertising field
Outdoor advertising: It is used in some outdoor glass buildings, bus station glass, airport terminal glass, etc. Various eye-catching advertising content is printed through solvents and weak solvents. The characteristics of one-way perspective are used to attract the attention of passers-by without affecting the indoor and outdoor vision, so as to achieve good advertising effects.
Exhibition display: The display windows and display cabinets at the exhibition site use one-way perspective films to better display the exhibits to the audience, while preventing the audience from seeing the backstage operations or debris in the display area, creating a neat and professional display environment. Exhibition-related information, corporate logos, etc. can also be printed on the film to enhance the publicity effect.

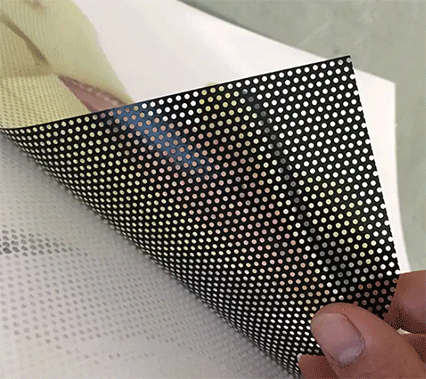

Premium OWV: OAV14170-UV Perforated Vinyl Privacy Window Film

Product parameters
Face film: The thickness is 140±10μm. This carefully designed thickness ensures that the one way vision vinyl window film has good flexibility and durability. In actual use, it can easily fit various curved surfaces and withstand a certain degree of external friction. It is not easy to break, which ensures the stability of long-term use. ​
Liner: It adopts 170±5g/m² composite lining. The composite material lining not only provides excellent support to prevent the mask from wrinkling and deformation during storage and transportation, but also effectively assists the laying of the mask during the film construction, making the operation smoother and improving the construction efficiency. ​
Width: It has a variety of specifications, namely 1.07m, 1.27m, 1.37m, and 1.52m. A wide range of width options can fully meet the coverage needs of glass and display surfaces of different sizes. Whether it is a small shop window or a glass curtain wall of a large commercial building, you can find the right specifications to achieve precise fitting and avoid material waste.​
Hole size: The aperture is 1.5mm. The aperture size, which has been scientifically calculated and repeatedly tested, is the key to achieving the one-way perspective function. When looking from indoors to outdoors, light can penetrate smoothly through these tiny apertures, providing a clear view; and when looking from outdoors to indoors, due to the reflection of light and the principle of vision, the effect formed by these apertures is like a tiny reflector, effectively blocking the external line of sight and protecting indoor privacy. ​
Light transmittance: The light transmittance is 30%, which maintains a certain amount of natural lighting in the room while ensuring the one-way perspective function. It can not only make the indoor space bright and comfortable, reduce the use of artificial lighting, achieve the purpose of energy saving and environmental protection, but also create a relatively soft and private indoor environment atmosphere. ​
Outdoor durability: Up to 12 months, the product has excellent weather resistance after special process treatment and material screening. Whether in the scorching summer, the cold winter, or the humid and rainy climate conditions, it can maintain stable performance, the color does not fade, the material does not age, and always maintain a good one-way perspective effect and appearance.​
Storage period: also 12 months. Under normal storage conditions, the product can be stored for a long time without affecting its performance. This provides merchants and users with sufficient inventory management time, reducing waste and cost increases caused by product expiration. ​

Product advantages​
Strong printing compatibility: Suitable for solvent, weak solvent, and UV printing, and can be perfectly combined with various printing processes. Whether it is solvent printing that requires bright color performance, or UV printing that focuses on environmental protection and fineness, this film can accurately present the printed pattern, with high color reproduction and good image clarity, providing a broad creative space for advertising, decoration and beautification and other applications. ​
Significant one-way perspective effect: The unique aperture design and material optical properties create an excellent one-way perspective function. In commercial places, it can be used for window display, which can not only attract the attention of outdoor customers and display the goods in the store, but also prevent the outside world from having a clear view of the store, protecting commercial privacy and the uniqueness of the store layout; in residential applications, it can allow indoor residents to enjoy the outdoor scenery while effectively preventing outside prying and ensuring the privacy of life.​
Easy to install: The moderate thickness of the film and the high-quality composite lining make the film easy to operate during installation. It can be cut and laid according to different construction surfaces, and it fits firmly without bubbles, wrinkles, and other problems. Even people without professional construction experience can complete the installation smoothly under simple guidance.

Feedback

Industry knowledge

In the curing process of one-way vision perforated vinyl privacy window film, are the key functional layers cured? What curing methods and equipment are used? What impact does the curing process have on the performance of the product?

In the production process of one-way vision window film, the curing of key functional layers (usually including glue layer, pigment layer, protective layer, etc.) is a key step to ensure product quality and performance. The main purpose of the curing process is to cross-link or cure the material molecules in these functional layers through physical or chemical methods, thereby improving their hardness, wear resistance, weather resistance, and resistance to solvents and ultraviolet rays. For HANKER's advanced one-way vision window film, these key functional layers have undergone rigorous curing to ensure that the product can meet the high-demand customers who use it for a long time or need fully compatible printing methods (such as solvents, eco-solvents, UV and latex).
HANKER uses a variety of advanced curing technologies and equipment in the curing process of one-way vision window film to ensure the stability and consistency of product quality. Specifically, the following curing methods are mainly included:
Thermal curing: Use heating equipment (such as ovens, hot air circulation devices) to heat the window film, so that the resin, cross-linking agent and other components in the functional layer react chemically at high temperature to form a stable network structure. HANKER's production base is equipped with an advanced temperature control system that can accurately control the heating temperature and time to ensure the curing effect.
UV curing: Use ultraviolet light to irradiate the one way vision vinyl window film, so that the photoinitiator in the functional layer absorbs light energy to produce free radicals or ions, thereby initiating polymerization or cross-linking reactions. UV curing has the advantages of high efficiency, environmental protection, and energy saving, and is especially suitable for heat-sensitive materials. HANKER's R&D center is equipped with high-performance UV curing equipment, which can customize curing solutions for window films of different materials and thicknesses.
Electron beam curing (EB curing): A solvent-free, pollution-free advanced curing technology that directly acts on the surface of the window film through high-energy electron beams to stimulate chemical reactions between material molecules. EB curing has the advantages of fast curing speed, controllable curing depth, and no need for additives, and is particularly suitable for occasions with extremely high environmental protection requirements. HANKER has also introduced EB curing technology in the production of some high-end products to further improve product performance.
Curing treatment has a profound impact on the performance of one way vision perforated vinyl window film, which is mainly reflected in the following aspects:
Improved durability: After fully cured, the surface hardness and wear resistance of the window film are significantly improved, which can effectively resist scratches and wear in daily use and extend the service life.
Enhanced weather resistance: Curing treatment can enhance the resistance of window film to harsh environments such as ultraviolet rays, high temperature, and humidity, and reduce fading and aging caused by environmental factors.
Optimized printing compatibility: By precisely controlling the curing conditions, HANKER's perforated vinyl privacy window film can perfectly be compatible with a variety of printing methods to ensure the clarity, color saturation and adhesion of the printed pattern.
Reduced residue: Window film with removable glue and optimized curing treatment can reduce residue when removed and protect the surface of the attached object from damage, which is particularly important for home decoration, car color change and other fields.
Environmental protection and sustainability: During the curing process, HANKER focuses on the use of environmentally friendly curing technology and materials to reduce the emission of harmful substances, which is in line with the concept of sustainable development.

<
