Reflectives Sheeting

Key Features of Reflective Sheeting

• Manufactured using glass bead technology, micro prism technology, synthetic resin technology, thin film technology, coating technology and micro replication technology combined in a layered structure.

• Available in ten standard colors: white, yellow, red, green, blue, brown, orange, fluorescent yellow, fluorescent orange and fluorescent yellow-green.

• Designed for a long service life under continuous outdoor exposure, maintaining reflectivity across repeated day and night cycles.

• High reflectivity performance suited for low-light and nighttime visibility requirements.

• Compatible with screen printing processes, allowing text, symbols and graphics to be applied directly onto the film surface.

• Self adhesive backing enables direct application to rigid substrates without additional mechanical fixing.

Recommended Applications

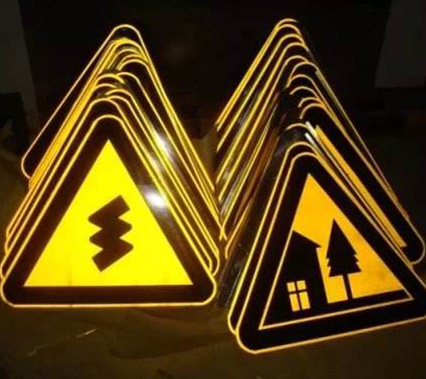

• Urban road traffic signs, including regulatory, warning and directional signage.

• Retro-reflective signage for vehicles, trucks and ships, supporting visibility identification in transportation fleets.

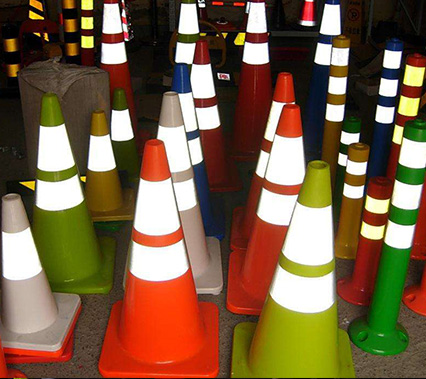

• Temporary traffic signs and billboards used in construction zones, detours and short-term traffic management.

Storage and Handling Guidelines

• Store the film in a well-ventilated, dry and shaded location, away from direct sunlight and moisture.

• Place cartons on a pallet rather than directly on the floor to avoid contact with ground moisture.

• Each pallet should not be loaded with more than five layers of cartons to prevent pressure damage to the film.

• Recommended operation temperature during application: 18 to 25 degrees Celsius.

• Rated working temperature range once installed: minus 20 to 60 degrees Celsius.

Installation and Application Guidance

Correct application temperature has a direct effect on adhesion quality and long-term surface performance. As with general adhesive vinyl products, working within the recommended operation temperature range helps the adhesive layer bond evenly and reduces the risk of bubbling or edge lifting. The best temperature to apply vinyl decal style materials, including reflective sheeting, generally falls within a moderate ambient range, avoiding both very low and very high temperatures during installation.

General guidance on how to apply adhesive vinyl includes cleaning the substrate surface thoroughly, removing dust, grease and moisture before application, and applying steady, even pressure from the center outward to prevent trapped air. If repositioning or removal is required, a dedicated wrap adhesive remover can help minimize film residue left on the substrate surface, particularly on painted or coated panels.

Reflective Sheeting Within the Broader Self-Adhesive Film Category

Reflective sheeting belongs to a wider family of self-adhesive surface films that share common installation principles. While reflective sheeting is engineered specifically for retro-reflective performance in traffic and transportation signage, related film categories such as architectural films are engineered for interior and exterior surface renovation rather than light reflection. These films are commonly used in projects such as hotel renovation design, office refurbishment and front door vinyl wrap applications, where vinyl wrapping is used to update surface appearance without full replacement of the underlying substrate.

For architectural films used indoors, fire performance classifications such as UL 10C and UL 10B are often referenced for door and wall assemblies, whereas reflective sheeting for outdoor signage is evaluated primarily on reflectivity, color durability and weather resistance rather than door fire-rating standards. The comparison below outlines general distinctions between the two film categories at a functional level.

FAQ

Q1: What technologies are used to manufacture reflective sheeting?

The film combines glass bead technology, micro prism technology, synthetic resin technology, thin film technology, coating technology and micro replication technology within a layered structure to achieve retro-reflective performance.

Q2: What colors are available for reflective sheeting?

Standard colors include white, yellow, red, green, blue, brown, orange, fluorescent yellow, fluorescent orange and fluorescent yellow-green, covering common traffic sign color requirements.

Q3: How should reflective sheeting be stored before installation?

The film should be kept in a ventilated, dry and shaded area, placed on a pallet rather than directly on the floor, with no more than five layers of cartons stacked per pallet.

Q4: What is the recommended temperature range for applying the film?

Application is recommended within an operation temperature of 18 to 25 degrees Celsius, while the rated working temperature once installed ranges from minus 20 to 60 degrees Celsius.

Q5: Can reflective sheeting be removed or repositioned after application?

Repositioning should be done carefully during initial installation. For removal, a suitable adhesive remover can help reduce film residue on the substrate, similar to practices used with other self-adhesive vinyl films.

Q6: Is reflective sheeting the same as architectural or decorative vinyl film?

No. Reflective sheeting is designed for retro-reflective visibility in outdoor signage, while architectural films are designed for interior or exterior surface renovation such as hotel renovation design or office refurbishment. They share self-adhesive installation methods but serve different functional purposes.

Why Outdoor Durability Starts With Material Layering

Most performance failures blamed on a finished installation actually trace back to what happens inside the film long before it ever reaches a wall, a sign face, or a vehicle panel. A functional sheeting product is not a single sheet of colored plastic. It is a stacked system: a top film layer carrying pigment or micro-prismatic structure, a UV-stabilizing layer beneath it, a pressure-sensitive adhesive tuned to a specific substrate, and a release liner that protects the adhesive until installation. Each layer is engineered separately, then laminated under controlled tension so the finished roll behaves as one material rather than several loosely joined ones.

When any one of those layers is undersized for the climate it will face, the symptoms show up months or years later as edge lifting, color drift, or a hazy surface that no longer reflects light efficiently. That is why service life claims should always be read alongside the exposure conditions they were tested under, not treated as a flat number that applies everywhere.

Reflective Sheeting Classes and Where Each One Performs Best

Not every application needs the highest reflectivity available, and specifying too high a grade often wastes budget without adding functional value. Reflective sheeting is generally grouped into a small number of construction types, each built around a different optical mechanism and a different expected outdoor lifespan.

A useful rule of thumb during specification: match the grade to how much of the exposure period happens in low light. A daytime-only application rarely justifies the added cost of a full-cube prismatic structure, while any installation relied upon at night or in poor weather benefits from the higher optical return, even at a higher upfront price.

Self Adhesive Vinyl Systems for Architectural Wrapping

Architectural wrapping projects put different demands on the adhesive layer than signage does, mainly because the substrates involved are far more varied. Metal composite panels, painted concrete, textured masonry, glass curtain walls, and interior partitions all absorb and release heat differently, which means a single adhesive chemistry rarely performs equally well across all of them.

Three adhesive families cover most architectural use cases:

• Permanent acrylic adhesive        Designed for surfaces that will not be re-wrapped for the life of the film, offering the strongest long-term bond and the highest resistance to edge lift under thermal cycling.

• Removable or repositionable adhesive        Used where a wrap is expected to change with a seasonal campaign or a lease term, allowing clean removal without substrate damage.

• Air-egress channel adhesive        Engineered with a micro-channel pattern that lets trapped air escape during application, which is particularly valuable on large vertical panels where bubble-free finishing matters visually.

For textured or slightly irregular substrates, cast self adhesive vinyl generally conforms better than calendered vinyl because of its lower internal stress and greater dimensional stability, though calendered options remain a cost-effective choice for flat, short-to-medium-term installations.

How Installation Sequence Affects Long-Term Film Performance

Two identical rolls of film can produce very different results depending purely on how the installation was sequenced. Skipping or rushing any one of the following stages is one of the most common causes of premature failure reported in the field.

Each stage affects adhesion strength, edge stability, and the final optical clarity of the film.

Surface cleaning removes oils and residual coatings that would otherwise sit between the adhesive and the substrate, reducing bond strength from the start. A temperature check confirms both the substrate and ambient air fall within the adhesive manufacturer's stated application range, since bonding outside that range often produces a weak initial tack that never fully recovers. Air bubble release and edge sealing are frequently rushed on tight schedules, yet they are the two steps most closely linked to long-term edge lift and moisture intrusion under the film.

Weather Resistance: UV Exposure, Moisture Cycling, and Temperature Swings

Three environmental factors account for the large majority of premature film failures reported across outdoor installations.

Films rarely fail from a single extreme event. Most degradation is cumulative, driven by thousands of small expansion and contraction cycles over several seasons rather than one storm or one heat wave.

• UV exposure        Breaks down pigment bonds and polymer chains over time, which is why stabilizer packages and protective topcoats matter as much as the base film color.

• Moisture cycling        Repeated wetting and drying, especially near seams and cut edges, gradually weakens adhesive bond strength if edges are not properly sealed during installation.

• Temperature swings        Cause the film and the substrate to expand and contract at different rates, and over enough cycles this mismatch is what eventually produces visible edge lift, particularly on metal panels that heat quickly in direct sun.

Manufacturing consistency plays a direct role in how well a film resists these three factors. Facilities that control their own calendering and coating processes, rather than sourcing base film from multiple third parties, are generally able to hold tighter thickness and adhesive-coating-weight tolerances across a production run, which translates into more predictable outdoor behavior batch to batch. Shanghai-based producers of PVC calendered film and release paper, for example, have expanded in-house capability over the past decade specifically to reduce this kind of batch variability for both signage and reflective vinyl product lines.

Reflective Vinyl vs Standard Architectural Film: Key Attribute Comparison

The two categories are frequently specified together rather than as alternatives. A building entrance, for example, might combine a decorative architectural wrap on a facade panel with reflective elements on adjacent safety signage or curb markings, each selected for the specific optical job it needs to do.

Frequently Asked Questions

Q1: How long does reflective sheeting typically last outdoors?

Most engineering and high-intensity grades are rated for 7 to 10 years of outdoor exposure, while diamond grade constructions can reach 10 to 12 years under normal weathering conditions. Actual lifespan depends heavily on UV exposure levels, installation quality, and regional climate.

Q2: What causes self adhesive vinyl to lift at the edges?

Edge lift is most often caused by incomplete surface cleaning before application, insufficient edge sealing, or repeated temperature cycling that stresses the bond between film and substrate. Selecting an adhesive rated for the specific substrate reduces this risk significantly.

Q3: Can architectural films be applied over textured or uneven surfaces?

Cast vinyl films generally conform better to textured or slightly irregular surfaces than calendered films, due to lower internal stress in the material. Surface texture severity should still be evaluated before specifying any film type.

Q4: Is higher reflectivity always the better choice for signage?

Not necessarily. Higher reflectivity grades cost more and are most valuable where low-light or nighttime visibility matters. Daytime-only applications can often use a lower grade without a meaningful loss in functional performance.

Q5: How does temperature affect the film application process?

Applying film outside the adhesive's recommended temperature range often produces weak initial tack that does not fully recover later, even after the film reaches ideal conditions. Checking both substrate and ambient temperature before application is a standard best practice.
